- Agricultural Tractor Tires
View Applications
ROWXTRA

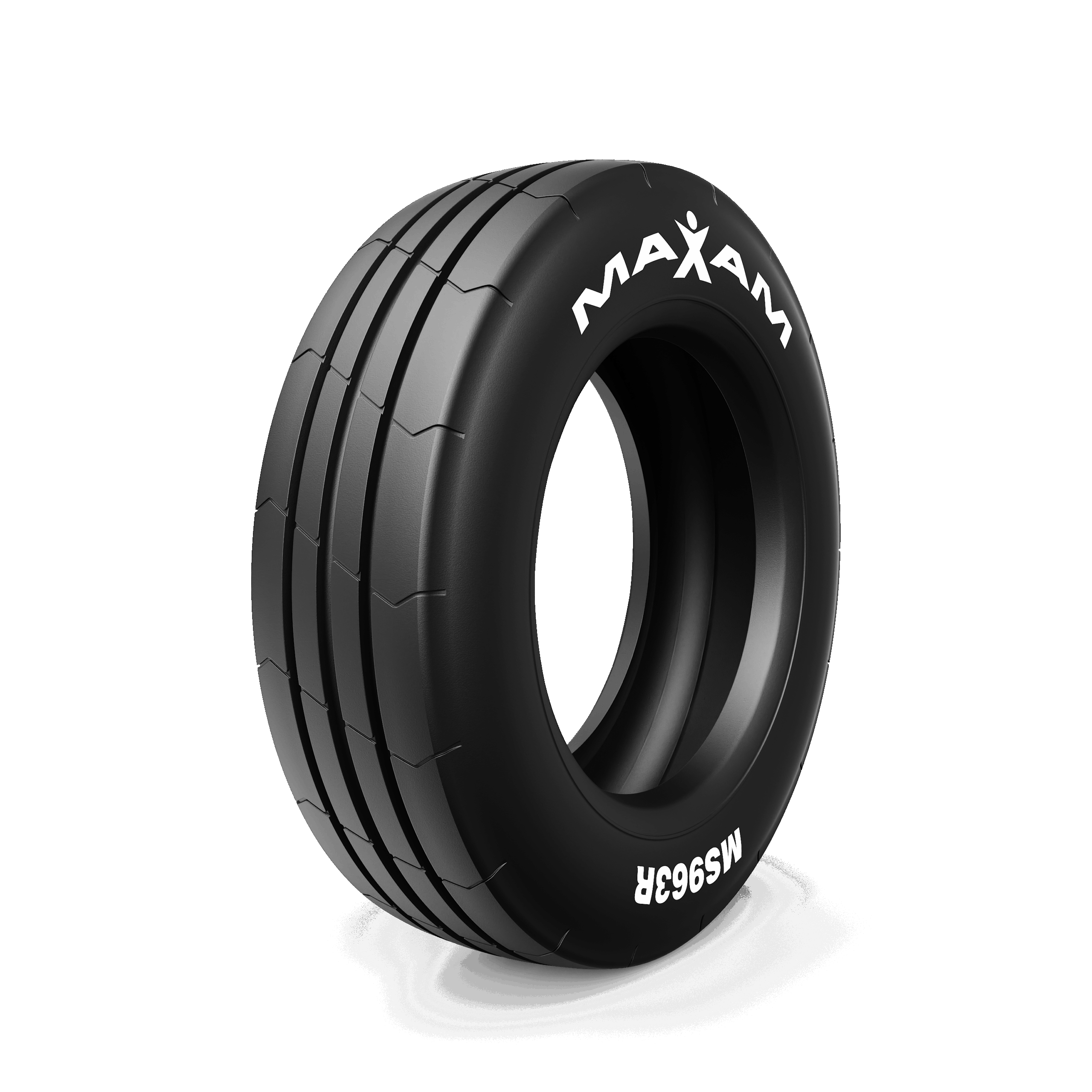

MS963R
Designed for balers, hay mergers, seeders, and other agricultural machinery. All-steel radial ribbed implement L1 pattern for high flotation, high flexibility, excellent puncture resistance, extended service life, low rolling resistance and minimal soil disturbance.
Get in Touch with a MAXAM Representative Today
Features & Benefits
All-Steel Radial Construction: Provides superior load capacity, impact resistance, and deformation resistance
Special cut-resistant compound to significantly enhance wear life and cut resistance
Adaptive Sidewall Design: Engineered with a highly flexible sidewall structure to withstand constant flexing
Ribbed Pattern: Ensures even ground contact, effectively reducing soil compaction while lowering rolling resistance
Technical Specifications
| Size | LI/SS | Type | Rim (Rec.) | S.W. | O.D. | S.L.R. | R.C. | R.C.I./ S.R.I. | Tread Depth | Weight | 75% of Int. vol. | Gross Flat Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | in | in | in | 32nds | lbs | gal | sq in | |||||
| mm | mm | mm | mm | mm | kg | l | sq cm | |||||
| VF245/70R19.5 | 145D | TL | 7.50 | 9.8 | 33.0 | 14.6 | 96.7 | 17.6 | 75.4 | 80.8 | ||
| VF245/70R19.5 | 145D | TL | 7.50 | 248 | 839 | 372 | 2455 | 14 | 34 | 521 | ||
| VF295/75R22.5 | 155D | TL | 9.00 | 11.5 | 39.9 | 17.5 | 116.3 | 18.9 | 106 | 145.2 | ||
| VF295/75R22.5 | 155D | TL | 9.00 | 292 | 1014 | 445 | 2955 | 15 | 48 | 937 |
