Selecting the correct rubber track size is one of the most critical decisions for maintaining your compact track loaders, skid steer, and mini excavator.
With an array of types of rubber tracks and part numbers on the market, a mistake in track width or pitch leads directly to downtime and damaged undercarriage components. This guide decodes the industry standard sizing system and provides a step-by-step process to ensure perfect compatibility and maximum durability for your construction equipment.
Why Rubber Track Sizes Matter
The precise dimensions of your rubber tracks are the foundation of machine performance. Correct sizing ensures proper engagement with the sprocket and idlers, protecting your investment in undercarriage parts.
An incorrect replacement track causes accelerated wear on drive lugs, misalignment, and potential de-tracking. For heavy-duty applications, especially on a multi-terrain loader or CTL, this precision is the difference between peak productivity and costly repair bills.
Decoding Rubber Track Sizing Labels
Manufacturers use a universal code to specify rubber track size. Understanding this three-number sequence is essential.
The code format is:
Track Width (in millimeters) x Pitch (in mm) x Total Number of Links.
Example: A 400 x 72.5 x 66 track is 400mm wide, has a 72.5mm pitch between lugs, and 66 links in total.
- Track Width: The first number. A wider track increases flotation; a narrower one improves ground pressure for harder surfaces.
- Pitch: The second number. This critical distance between drive lugs must match your machine’s sprocket tooth profile. Mismatch here destroys both components.
- Number of Links: The third number. This defines the track’s length and ensures it fits your machine’s undercarriage frame.
Always cross-reference these figures with your OEM manual or existing part numbers before ordering.
Did you know that MAXAM’s app features an equipment finder for tracks?
Download the MAXAM app today for more great tools like this:
How to Measure for a Replacement Rubber Track
Even with a code, physically measuring your worn track confirms the correct rubber track size.
- Measure Pitch: Using calipers, measure from the center of one lug to the center of the next. Average this across several lugs for accuracy.
- Measure Track Width: Record the width in millimeters from the outer edge across the inside of the track.
- Count the Total Number of Links: Tally every steel link or drive lug around the entire circumference.
Pro Tip: For severely worn excavator tracks, pitch is the most crucial measurement to get right for sprocket compatibility.
Installation Best Practices to Maximize Durability
Proper installation protects your new investment and validates any product warranty.

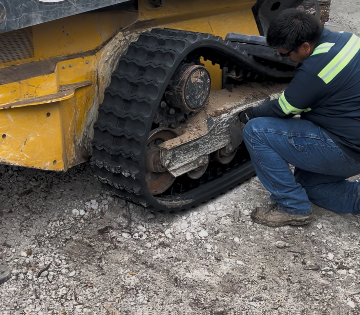

Preparation: Clean all undercarriage components (idlers, rollers, sprocket) of debris. Position the machine on level ground and fully relieve old track tension.
Installation:
- Drape the new rubber tracks over the sprocket and idlers, ensuring the directional tread pattern (if any) is correct.
- Carefully align the drive lugs with the sprocket teeth. Use a pry bar to guide the track onto the front idler.
- Apply slow, even tension. Consult your OEM manual for the precise sag specification, typically a measurement in millimeters between the track frame and the track bottom.
Final Checks: Perform a low-speed operational test. Listen for odd noises and visually confirm the track runs true on all undercarriage rollers. Re-check tension after the first hour of operation.
Conclusion: Precision Prevents Downtime
In earthmoving and snow removal, the right rubber track size is a strategic asset.
By mastering the three-number code, performing accurate measurements, and following meticulous installation steps, you ensure compatibility, extend the lifespan of steel cords and undercarriage parts, and avoid the severe costs of operational downtime. Don’t just order a track, find the perfect fit for your machine.
